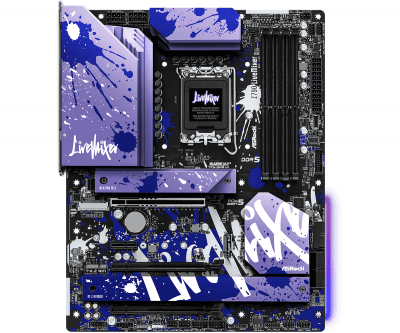

Дънна платка ASROCK Z790 LiveMixer, LGA 1700, DDR5, PCIe 5.0 Limited Edition
Информация
Интерфейси:
4 x SATA3 6.0 Gb/s
1 x 24-pin ATX Power connector
1 x Thunderbolt™ AIC Connector
1 x PCI Express 3.0 x1
1 x M.2 Wi-Fi module slot
1 x Power LED and Speaker Header
1 x RGB LED Header
1 x Front panel audio connector
2 x USB 2.0 Headers
1 x CPU/Water Pump Fan Connector
1 x 4-pin CPU fan connector
2 x 8-pin 12V Power connectors
2 x USB 3.2 Gen 1 Header
1 x SPI TPM header
5 x Chassis/Water Pump Fan Connectors
1 x PCI Express 5.0 x16
3 x Addressable LED Header
1 x Blazing M.2 Socket (NVMe PCIe 5.0)
1 x Front Panel Type C USB 3.2 Gen2x2 Header
2 x PCI Express 4.0 x16 (x4 mode)
4 x Hyper M.2 Socket (NVMe PCIe 4.0)
1 x eDP Signal Connector
Портове:
1 x Optical S/PDIF Out Port
1 x HDMI
1 x RJ-45
2 x Audio Jacks
6 x USB 2.0 Type A
4 x USB 3.2 Gen 1 Type-A
2 x USB 3.2 Gen 2 Type-A
2 x Antenna Mounting Points
2 x USB 3.2 Gen 2 Type-C
1 x DisplayPort 1.4
